How Does Dual Circuit Latching Relay Improve the Stability and Energy Efficiency of Industrial Control Systems?

With modern electrical control systems constantly evolving towards higher reliability, lower power consumption, and greater intelligence, relays are no longer simply "switching elements." The emergence of Dual Circuit Latching Relays, in particular, allows control logic to maintain stability while achieving more efficient energy management and more complex system linkages. So, why has it risen so rapidly in the industrial and energy sectors?

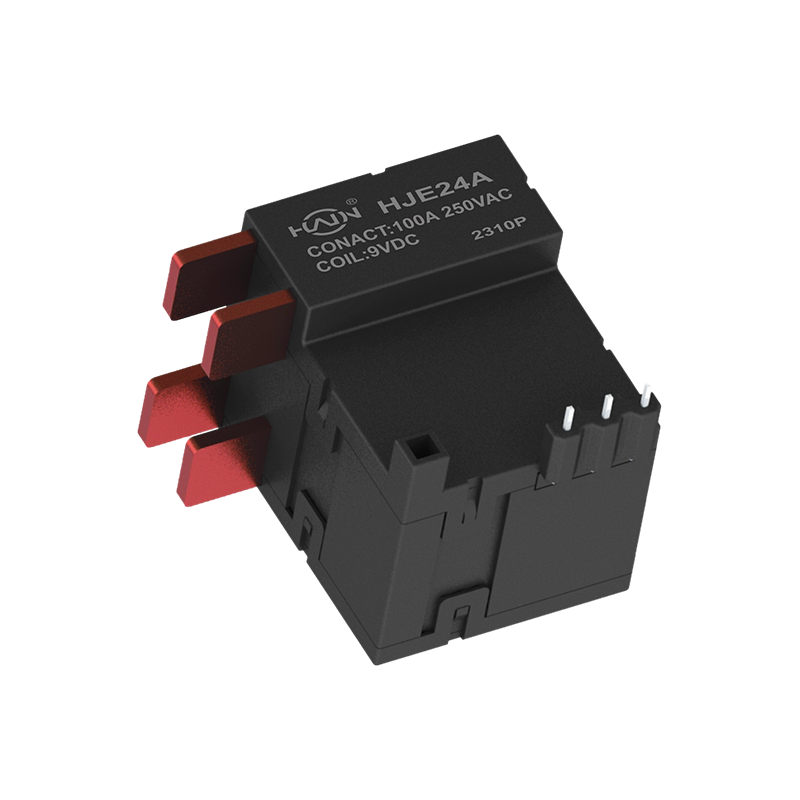

What is a Dual Circuit Latching Relay?

A Dual Circuit Latching Relay is a relay structure with dual independent control circuits and magnetic latching (self-locking) functionality. Its core feature is that once the coil has completed its action, even if the control signal disappears, the contacts can remain in their original state without requiring continuous energization.

The direct advantage of this design is the coexistence of extremely low power consumption and high state stability. In systems that need to maintain a switching state for extended periods, it can significantly reduce energy consumption while reducing coil heating and system load.

System Upgrades Brought by Dual-Circuit Structure

Compared to traditional single-circuit relays, the value of a dual-circuit structure goes beyond simply adding a control channel; it brings a higher level of control freedom to the system.

More Complex but More Stable Control Logic

In smart power distribution, energy storage systems, and industrial automation scenarios, it is often necessary to control two independent circuits simultaneously, such as switching between main and backup power supplies, or load tiered control. Dual-circuit self-locking relays can integrate this logic within a single device, thereby reducing the number of external control devices and improving overall reliability.

Reduced System Complexity and Failure Points

In system design, a principle is "less connection, less risk." The dual-circuit structure integrates multiple control functions into a single device, saving space and significantly reducing the risks associated with wiring errors and poor contact.

Why is the "Self-Locking" Mechanism So Crucial?

In many applications, such as smart meters, charging pile control, and power monitoring systems, relays do not require frequent switching; rather, state maintenance capability is emphasized.

The core value of the self-locking mechanism lies in:

Significantly reduced energy consumption

Reduced heat generation in the control system

Lower pressure on power supply design

More stable and reliable long-term operation

This characteristic is particularly important in today's rapidly developing new energy and smart grid era.

Application Scenarios Are Rapidly Expanding

The application of dual-loop self-locking relays is no longer limited to traditional industrial control but is gradually entering a wider range of energy and smart device fields.

In smart grids, it is used for load distribution and power switching; in new energy charging systems, it is responsible for the safety control of the charging path; in industrial automation equipment, it is used for multi-condition logic switching and protection mechanism implementation.

As systems increasingly demand "high reliability + low energy consumption," this type of relay is becoming a fundamental but crucial "hidden core."

The Importance of Manufacturing Capabilities and Reliability Assurance

High-performance relays rely not only on design but also on the stability and quality control capabilities of the manufacturing system.

Huajin Technology Jiaxing Co., Ltd. is a high-tech enterprise specializing in the R&D, production, and sales of relays, located at No. 707 Yanyu Road, Wuyuan Street, Haiyan County, Jiaxing City, Zhejiang Province.

The company was established in May 2021 with a registered capital of 10 million yuan, covering an area of 8,000 square meters and employing more than 120 staff members.

It has obtained ISO9001-2015 quality management system certification, and its products have passed CCC certification, State Grid certification, and TUV certification. The company also holds multiple technical patents.

As a professional wholesale supplier and OEM/ODM manufacturer of Dual Circuit Latching Relays in China, Huajin Technology Jiaxing Co., Ltd. not only provides standardized products but also offers customized solutions based on different customer needs, covering structural design, contact parameter optimization, and adaptation to special application environments.

Its product system covers multiple series, including single-phase, two-phase, and three-phase magnetic latching relays, as well as motor relays, meeting the diverse needs of smart grids, industrial control, and new energy systems.

Customization Is Becoming an Industry Trend

As application scenarios become increasingly complex, standardized products can no longer fully meet all needs. More and more customers are focusing on OEM/ODM capabilities, such as:

Adaptability to different voltage levels

Special load surge protection design

Reliability optimization for extreme temperature environments

More compact integrated solutions

In this trend, companies with complete R&D and large-scale production capabilities will occupy a more important position in the supply chain.

FAQ

Q1: What is the biggest difference between a dual-loop self-locking relay and a regular relay?

A: The biggest difference lies in the self-locking function and the dual-loop structure. Regular relays require continuous power to maintain their state, while self-locking relays retain their state without consuming power after activation.

Q2: Which industries is it suitable for?

A: Widely used in smart grids, new energy charging piles, industrial automation equipment, smart meters, and power control systems.

Q3: What are the advantages of a dual-loop design?

A: It allows for more complex control logic while reducing the number of external components, improving system reliability, and reducing the failure rate.

Q4: What are the advantages of Huajin Technology Jiaxing Co., Ltd. in this product area?

A: The company has large-scale production capabilities, a complete quality certification system, and OEM/ODM customization capabilities, and can provide stable supply and diversified solutions.
