Why does a three-phase AC relay need phase failure protection?
In modern industrial power systems, maintaining stable operation of three-phase electrical equipment is essential for productivity, safety, and equipment longevity. A Three-Phase AC Relay is specifically designed to control and switch three-phase circuits simultaneously, making it an important component in industrial motors, heavy machinery, and power distribution networks. While three-phase systems are generally reliable, they remain vulnerable to phase failure conditions that can cause severe operational issues. Understanding why phase failure protection is necessary helps engineers and facility managers improve system reliability and reduce maintenance costs.
Phase failure occurs when one of the three power phases is interrupted due to cable damage, loose connections, fuse failures, power supply issues, or equipment faults. When this happens, motors and other three-phase loads may continue operating under abnormal conditions, leading to overheating, increased current draw, reduced efficiency, and potential equipment damage. For this reason, integrating phase failure protection into a Three-Phase AC Relay solution has become a standard practice in industrial electrical design.
Understanding Different Types of Three-Phase Relay Solutions
Not all three-phase relay applications are identical. Different industrial environments require different relay configurations based on load characteristics, operating conditions, and protection requirements. The following categories represent common applications where phase failure protection plays a critical role.
| Relay Category | Primary Function | Main Application | Importance of Phase Failure Protection |
| Motor Control Relays | Motor switching and control | Industrial motors | Very High |
| Power Distribution Relays | Circuit management | Distribution panels | High |
| Magnetic Latching Relays | Energy-saving switching | Smart metering systems | Medium to High |
Motor Control Three-Phase Relays
Motor control relays represent one of the most common applications for a Three-Phase AC Relay. Industrial motors are widely used in manufacturing lines, pumping stations, compressors, ventilation systems, and material handling equipment. Because these motors depend on balanced three-phase power, they are especially vulnerable to phase loss conditions.
When a phase fails, the motor may continue rotating while drawing excessive current through the remaining phases. This condition, often referred to as single-phasing, creates significant thermal stress within the motor windings. Continuous operation under such circumstances can result in insulation degradation, reduced service life, and complete motor failure.
A relay equipped with phase failure protection can detect abnormal voltage conditions and disconnect the motor before severe damage occurs. This protection improves equipment reliability while minimizing costly downtime. In large industrial facilities where production interruptions can affect multiple processes, preventive protection becomes even more valuable.
Key Features of Motor Control Relays
- Simultaneous switching of three power phases.
- Fast response to abnormal operating conditions.
- Protection against phase loss and imbalance.
- Support for heavy-duty industrial loads.
- Improved operational safety.
Companies with strong relay engineering capabilities can further optimize relay designs for specific motor applications. Huajin Technology Jiaxing Co., Ltd. develops multiple relay models for industrial power control systems, providing customized solutions that address different load requirements and operational environments.
Power Distribution Three-Phase Relays
Power distribution systems represent another important category where phase failure protection is essential. Distribution panels, switchboards, and industrial power management systems rely on balanced phase conditions to ensure stable power delivery. A properly configured Three-Phase AC Relay helps manage circuit switching while maintaining operational stability across the network.
In power distribution applications, a phase failure can affect multiple downstream loads simultaneously. Equipment connected to the affected network may experience voltage imbalance, unstable operation, or unexpected shutdowns. Sensitive machinery and automation systems can be particularly susceptible to these disturbances.
Phase failure protection allows the relay to identify abnormal supply conditions and isolate affected circuits before widespread disruptions occur. This capability contributes to overall system reliability and helps reduce maintenance requirements. It also assists facility operators in identifying power quality issues before they escalate into larger operational problems.
Advantages in Distribution Systems
- Prevents equipment exposure to abnormal voltage conditions.
- Enhances power system stability.
- Reduces risk of cascading failures.
- Supports maintenance planning and fault diagnosis.
- Improves overall operational efficiency.
As industrial facilities become increasingly automated, relay reliability becomes a critical factor. Huajin Technology Jiaxing Co., Ltd. follows strict ISO9001 quality management standards and utilizes automated production equipment to ensure consistency and performance across its relay product range.

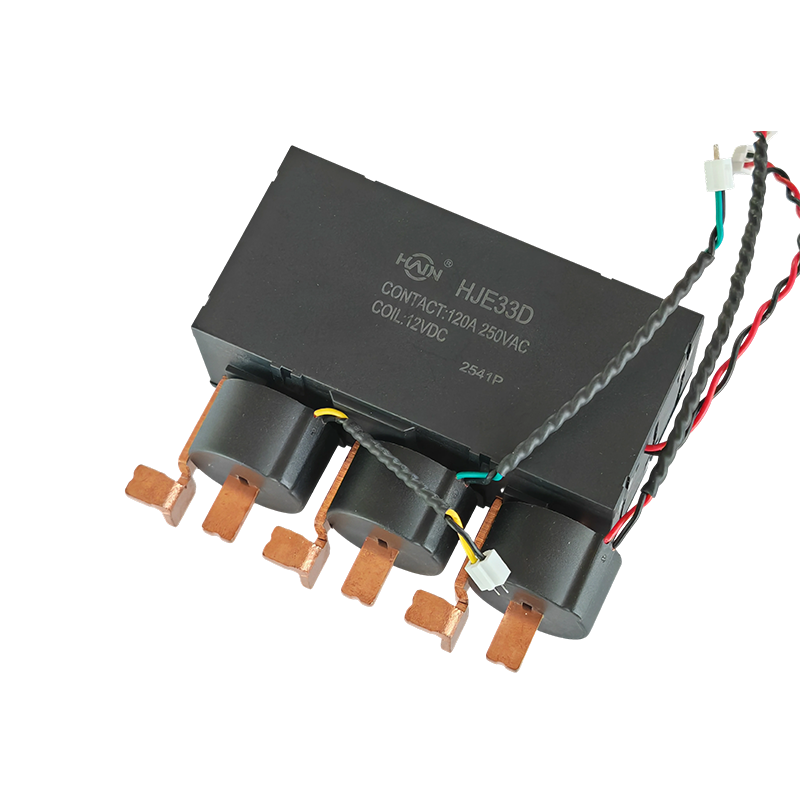

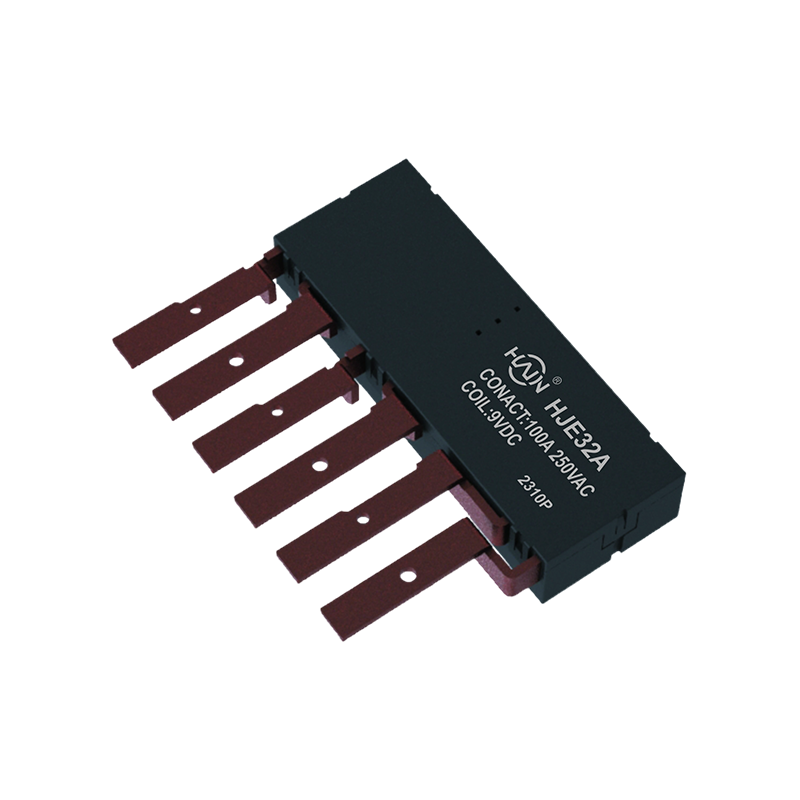

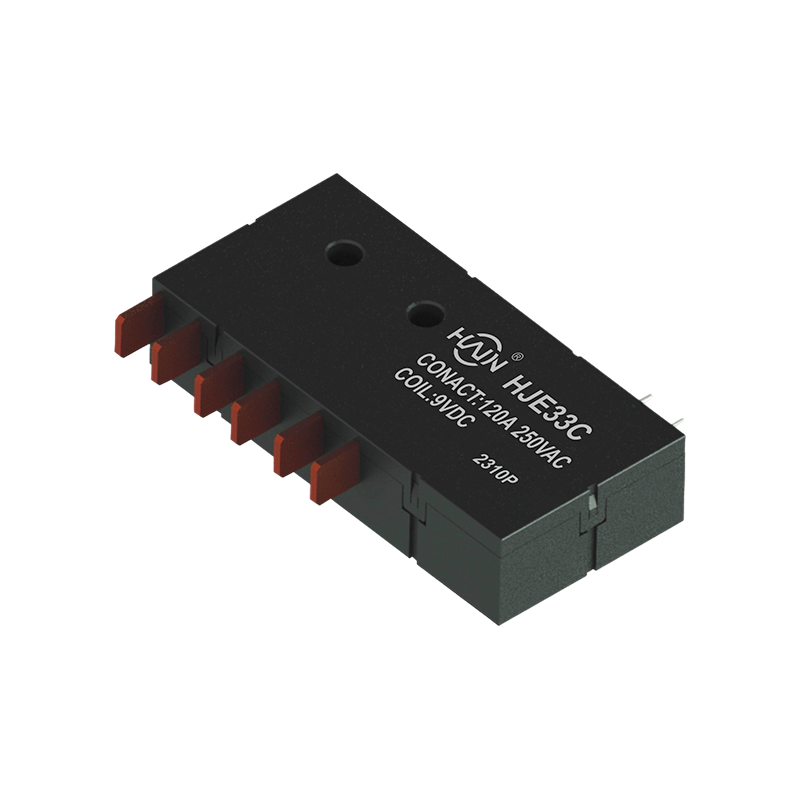

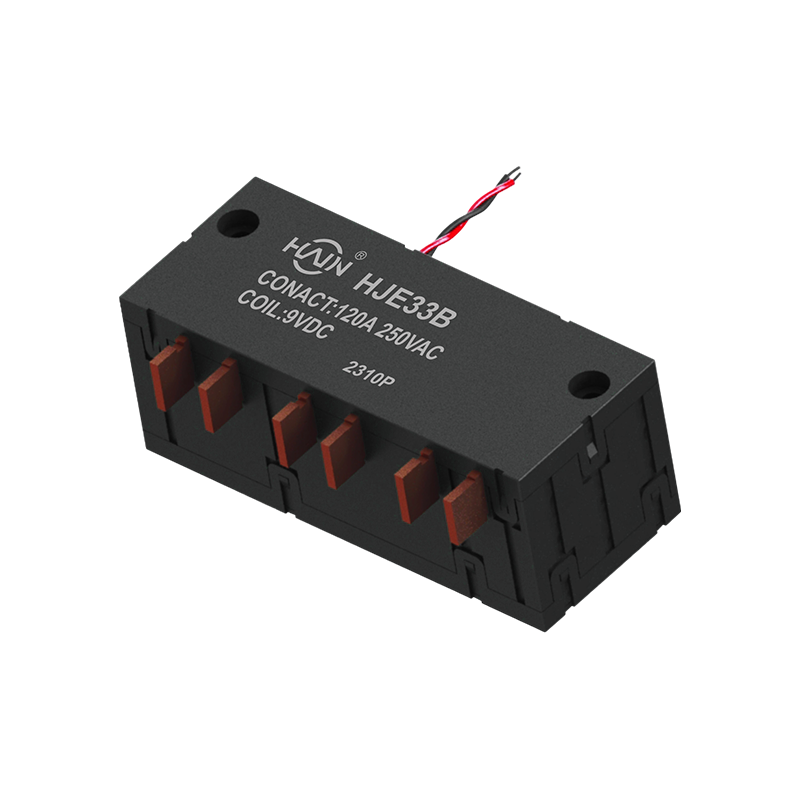

Magnetic Latching Three-Phase Relays
Magnetic latching relays represent a specialized category of relay technology. Unlike conventional relays that require continuous coil power to maintain their state, magnetic latching designs consume power only during switching operations. This characteristic makes them highly suitable for smart metering systems, energy management applications, and power monitoring equipment.
Although these relays are known for energy efficiency, they still benefit significantly from phase failure protection. In metering and monitoring applications, accurate power measurement depends on balanced phase conditions. A missing phase can introduce operational errors and reduce the effectiveness of power management strategies.
By integrating phase monitoring capabilities, these relay systems can respond to abnormal electrical conditions and help maintain accurate control functions. This approach supports both operational reliability and energy management objectives.
One reason this category has gained attention is the growing demand for intelligent power infrastructure. Huajin Technology Jiaxing Co., Ltd. has developed extensive expertise in magnetic latching relay technology, achieving annual production capacity exceeding ten million units while supporting a wide range of customized projects.
Differentiating Characteristics
- Low power consumption.
- Long service life.
- Suitable for smart energy systems.
- Reliable switching performance.
- Enhanced monitoring capabilities when combined with protection functions.
How Phase Failure Protection Enhances Relay Performance
The value of phase failure protection extends beyond basic fault detection. A modern Three-Phase AC Relay equipped with protection functions contributes to a comprehensive electrical safety strategy. Rather than simply switching loads, the relay becomes an active component in equipment protection and system management.
Phase failure protection can improve equipment lifespan by preventing excessive thermal stress and reducing the likelihood of catastrophic failures. It can also lower maintenance costs by identifying faults early and reducing the frequency of emergency repairs. Furthermore, protecting critical equipment helps maintain production continuity, which is particularly important in manufacturing and infrastructure applications.
Manufacturers with dedicated research and development capabilities can continuously improve relay designs to meet evolving industry requirements. With a municipal high-tech R&D center, multiple patented technologies, and experienced engineering personnel, Huajin Technology Jiaxing Co., Ltd. continues to expand its relay portfolio to support diverse industrial applications.
Selecting the Right Relay Solution
Choosing an appropriate relay requires careful consideration of application requirements, load characteristics, operating environment, and protection needs. Whether the application involves industrial motors, power distribution systems, or smart metering infrastructure, phase failure protection should be considered an essential design requirement rather than an optional feature.
Engineers should evaluate switching capacity, environmental conditions, operational cycles, reliability expectations, and future scalability. In many cases, a properly selected Three-Phase AC Relay can significantly improve system performance while reducing operational risks associated with power supply abnormalities.
Conclusion
Phase failure is one of the most common and potentially damaging faults in three-phase electrical systems. Without proper protection, motors, distribution networks, and intelligent power management systems may experience overheating, reduced efficiency, and premature equipment failure. A well-designed Three-Phase AC Relay equipped with phase failure protection provides an effective safeguard against these risks.
As industrial operations continue to demand higher levels of reliability and efficiency, integrating phase monitoring and protection functions into relay solutions becomes increasingly important. By combining advanced relay technology, quality manufacturing processes, and customized engineering support, modern relay providers can help users achieve safer and more dependable power system performance.
Frequently Asked Questions
Q1: Why is phase failure protection important for motor applications?
Phase failure protection prevents motors from operating under single-phasing conditions, reducing the risk of overheating, insulation damage, and unexpected motor failure.
Q2: Which relay category benefits most from phase failure protection?
Motor control relays typically benefit the most because industrial motors are highly sensitive to voltage imbalance and missing phases.
Q3: Can magnetic latching relays also use phase failure protection?
Yes. Magnetic latching relays can integrate monitoring and protection functions to improve reliability in smart metering and energy management applications.
Q4: What advantages does Huajin Technology Jiaxing Co., Ltd. offer for relay solutions?
The company provides extensive relay development experience, automated production capabilities, ISO9001-certified quality management, patented technologies, and customized relay solutions for a wide range of industrial applications.
